New Cabin Top Hand Rails for Andrea Lynn
Forming the rails
I looked at a couple of ways to form the curve of the hand rails. I
took measurements of the cabin top. I noticed that it seemed to form
part of a very large circle. But I wansn't really confident that it was
a true circle. So I decided why not use the actual cabin top as a mould.

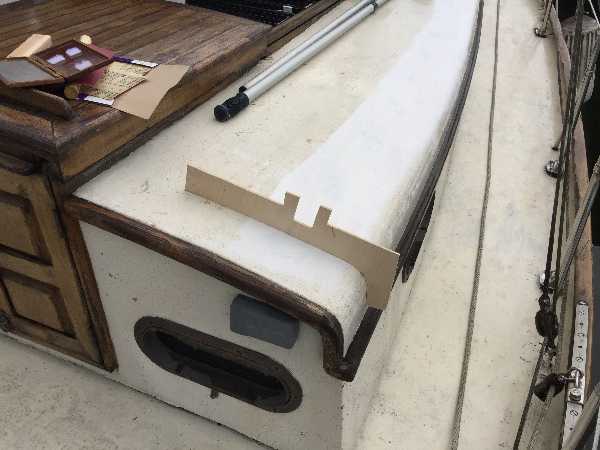

I created a template to match the curve of the cabin
and establish the position of the new handrail. It closely matches the
position of the old handrails.

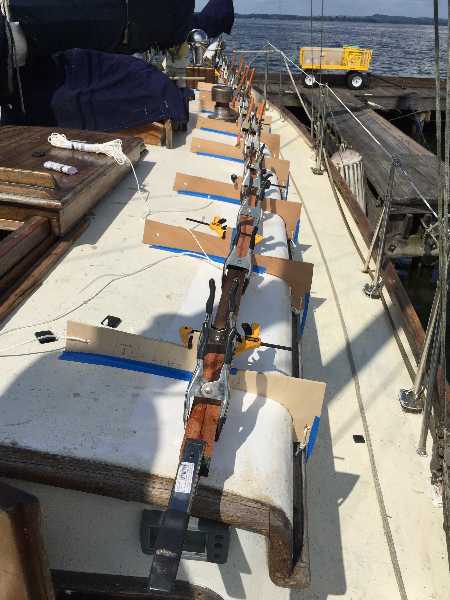

I then made 10 copies of the template. These served
as moulds for the two strips that will make up the hand rail. I
figured that the best way of holding these templates down wwas with masking
tape.

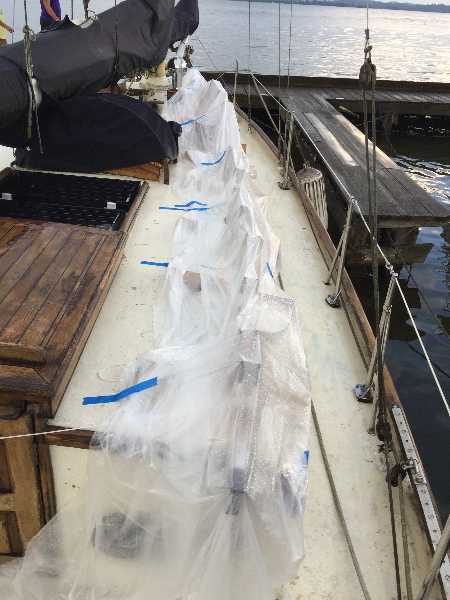

At this point I did not want the wood to get wet. So
I draped plastic over it while the epoxy was setting up. A squall came
up about 15 minutes after I glued up the starboard side. The water pooled
and further held down the plastic. The wood stayed completely dry as the
epoxy cured.

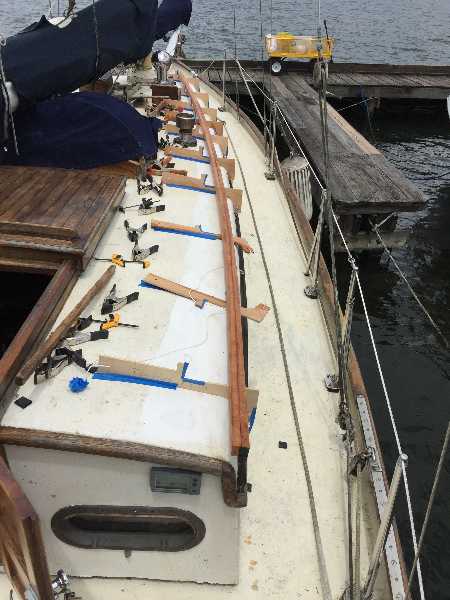

The next day I removed the cured handrail.
There was a little bit of springback but not too much resistance.
This was a good sign that the rails would be easy to install later.

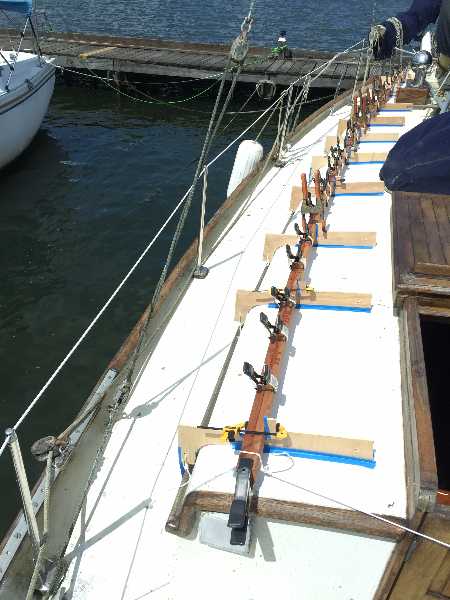

I did the port side the same way.

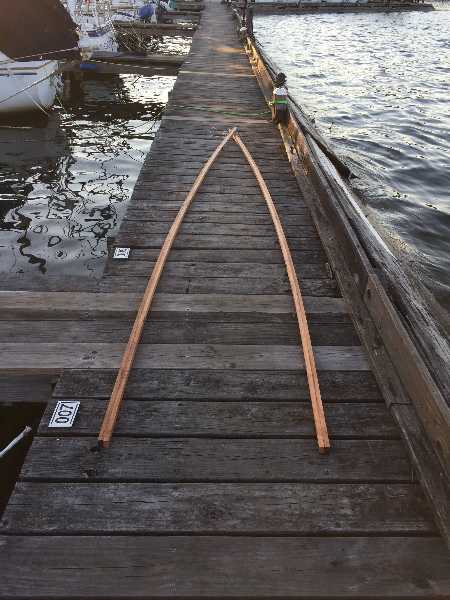

The dried handrails are ready to take home for
finishing work.
